SCJ- 90E+S2X4.15G

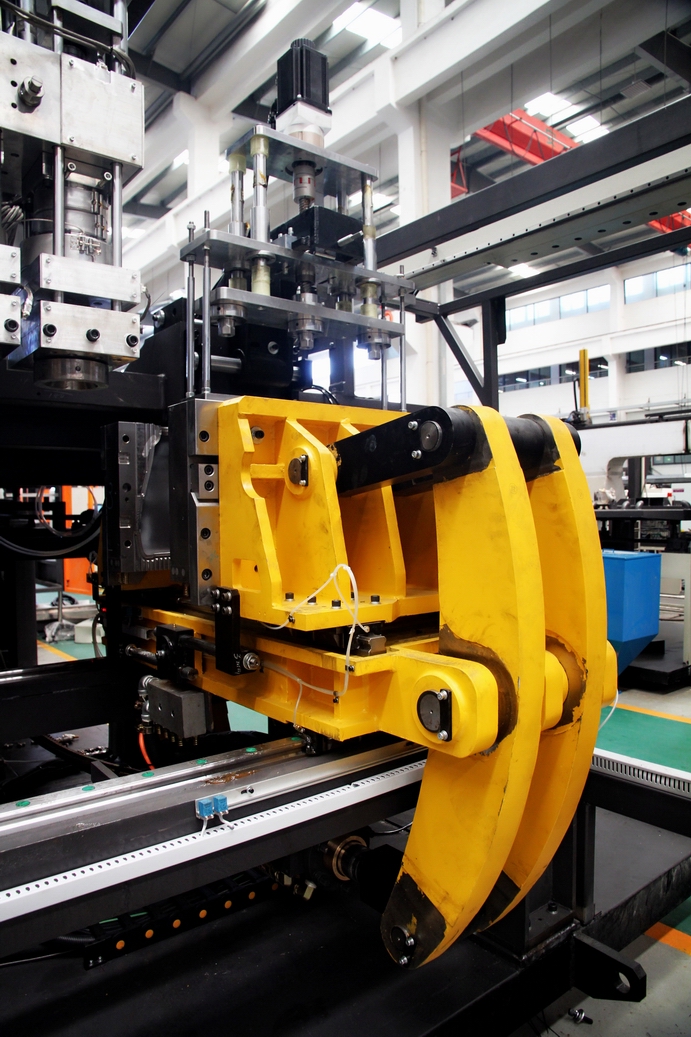

Bottle blowing machine
Model No.: SCJ- 90E+S2X4.15G
Category: Extrusion blow molding machine, Hybrid electric blow molding machine
Feature: Mono layer
Plastic proceed: PE、PP
Application: Barrel, Jerr can, Bottle etc.
Max. extrusion capacity: 60kg/h+14kg/h +2kg/h
Production Volume: 2L
Mold station: 2
No. of Die heads: 2
Extruder diameter: 90mm
Min. mold clamping distance: 230~270 adjustable
Thickness control system: Yes
Warranty: One Year Guarantee
Machine customization: Yes
Please call+86-757-29376175,Consulting order.

1.Full-electric for the machine, energy saving and environment protection. Energy reduced 50%~60% if comparing with hydraulic machine.
2.Full-electric digital control to achieve precise position. position accuracy for mold movement improve to 0.03mm from 0.05mm(Hydraulic machine).
3.Most efficient energy utilization realized by full-electric digital control system. Servo motor drive machine directly, reduce the energy consumption during energy conversion process for hydraulic machine.
4.Shorten cycle time. 19.6s is realizable for product.
5. Save labor cost. With three axes servo driven robots, it’s able to reduce 2 workers for each machine. Saving staff wage and management cost therefore.
6. Meet highly hygienic standard. Full electric driven machine is more suitable for the application of food, beverage, medicine etc. which has strict hygienic requirement.
7.Utility model patents and know how is applying to this machine.

product feature
1. Equip with servo motor to drive die-head, blow pin and carriage movement.
2. SIEMENS S7-200 PLC, response speed is 0.37μs
3. Blow pin adjust by setting parameters from the touch screen, free from mechanical adjusting.
4.  Replace mechanical structure of hydraulic cylinder and sensor with servo motor and ball screw rod, providing accurate action, quick movement and fast responding.
5. Incorporate with electric lift platform and deflash device.
6. Use famous pneumatic, hydraulic and electrical control element with long life usage.
7. Optionally configurate with automatic material loading machine and product conveyor to meet flow line production.
8. Extruder uses variable frequency control which adapt to the change of extruder rotation speed in blowing process.
9. Approach switch is from Swiss Contrinex which is excellent for security assurance.

类别Category 项目 Item 单位 Units 参数 Parameter
基本参数Basic information       Feature / 单层SINGLE LAYER
制品最大容积Production Volume L 2L*4
适用原料Plastic proceed / PE\PP
模头坯料数量No. of die head / 4
模头中心距 Center distance mm 160
机器净重约 Machine weight kg 12000
机器外形尺寸 Machine dimension mm,L×H×W 6*3.7*4.7
模头Die Head            模头加热段数 Die head heating zone / 9
模头加热功率 Die head heating power kW 16
开合模系统Clamping unit           模架数量 No. of station / 2
最小合模距 Min.  clamping distance mm 230~270可调 adjustable
锁模行程 Clamping stroke mm 300
最大容模量 Max. mold dimension (mm,W×H) 650x510
锁模力 Clamping force kN 196
挤出系统 Extrusion system        螺杆直径 Extruder diameter mm 90
螺杆长径比 Extruder length/diameter ratio L/D 24
螺杆转速 Extruder rotating speed r/min 10~66
最大塑化能力Max. extrusion capacity kg/h 180
挤出电机功率 Extruder motor power kW 45
机筒加热段数 Barrel heating zone / 4
机筒加热功率 Barrel heating power kW 15.6
动力系统 Power syetem             电动移模electric mold movement (kW) 5.5 / 5.5
电动锁模 Electric mold clamping (kW) 4.5 / 4.5
电动插笔 Electric blow pin (kW) 3 / 3
电动厚薄 Electric thickness control (kW) 4.5
液动压力 Pressure of Hydraulic System  Mpa 10
气动系统工作压力Pressure of Pneumatic System Mpa 06.—0.8
水冷系统工作压力Pressure of cooling system Mpa 02.—0.3
耗气量 Air consumption  m3/hr 8~10
热切刀变压器功率 Power of knife (kW) 2
总功率 Total power (kW) 106.1
备注 Remark
破碎机选型 Grinder recommend hp 8~10
冷水机选型 Chiller recommend hp 2
空压机选型 Air compressor recommend hp 106.1
叠加壁厚控制后 Thickness control   机型 Model / 20
伺服电机功率 Servo motor power kW 15
总功率 Total power kW 10

1. For material cyclic utilization, customer could choose to equip hydraulic automatic filter exchange device, bottom blower, thickness controller, Auto deflash unit.
2. Optional configuration: advanced sealing knife, transverse cutting knife, imported hot knife and cold knife etc.
3. Optional configuration: oblique blow pin, bottom blow pin, needle blow pin, auxiliary cooling device etc.
4.Thickness control system is optional.
5. Permanent brushless DC motor is developed by Leshan for professional use in extrusion blow molding machine. It’s reliable and save energy from 8% to 15% in total.
6. Macromolecular mixture screw. Guarantee the product function and save material 30%-50%.
7. Austria SIGMATEK electrical control system. Execute command speed is tenfold of the traditional model.
8. Remote after-sales service system with the function of automatic system trouble analysis, maintenance record, report form statistics, video transmission, SMS notice and alarm etc.
9. Optional configuration: pneumatic conveying system, conveyor belt, automatic material supplying system, four in one material feeder etc.
10. Optional configuration: leak proof test, in mold labeling, mold rejection pin function, mold stretch function.
11. Machine platform could be move back and forth. It’s convenient for mold installation.
12. Optional configuration: parison folder function, two axes servo driven robots and uniaxial servo driven robot
13. Optional configuration for die-head: spreader type, screw type, continuous extrusion and storage extrusion.
