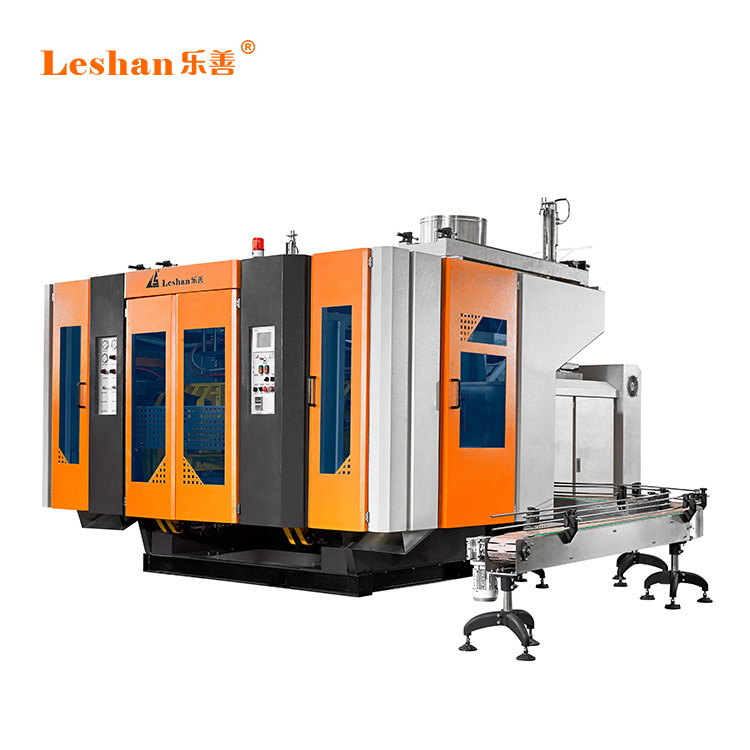

机型 | SCJ-90U2X6.5G(椰奶) | |||
项目 | Items | 单位 Units | 参数Specification | |
基本参数 Specification |
类别 | Category | / | 单层 1 |
制品最大容积 | Max. Blow Volume | L | 1.25 | |
适用原料 | Material | / | PE,PP | |
模头坯料数量 | Qty.Of Die Head | / | 6 | |
常用模头中心距 | Die Head Distance (Center to Center) | mm | 125 | |
机器净重约 | Net Weight | kg | 12000 | |
机器外形尺寸 | Machine Dimension | mm,L×H×W | 4853X2700X4314 | |

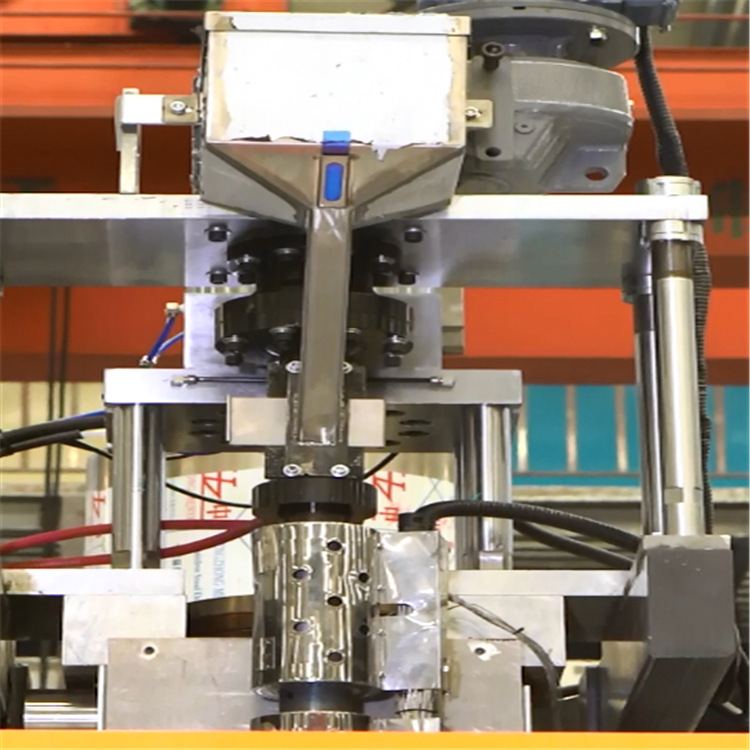

模头 Die Head |
模头加热段数 | Die Head Heating Zone | / | 13 |
模头加热功率 | Die Head Heating Power | kW | 10.6 | |
锁模架系统 Carriage system |
模架数量 | Qty.Of Station | / | 2 |
最小合模距 | Min Clamping Distance Of Mold | mm | 230 | |
最大开模距 | Max Clamping Distance Of Mold | mm | 430 | |
模板尺寸 | Effective Dimension Of Mold Plate | mm W×H | 700X390 | |
摆架行程 | Carriage Stroke | (mm) | 850 | |
锁模力 | Clamping Force | kN | 127 | |
挤出系统 Extruder Unit |
螺杆直径 | Extruder Diameter | mm | 90 |
螺杆长径比 | Extruder Length/Diameter Ratio | L/D | 24 | |
螺杆转速 | Extruder Rotating Speed | r/min | 20-66 | |
最大塑化能力 | Max Extrusion Capacity | kg/h | 160 | |
挤出电机额定功率 | Extruder Motor Rated Power | kW | 37 | |
机筒加热段数 | Barrel Heating Zone | / | 4 | |
机筒加热功率 | Barrel Heating Power | kW | 17 | |
冷却风机功率 | Cooling Fan Power | kW | 0.72 | |
动力系统 Power Unit |
油泵电机额定功率 | Oil Pump Motor Rated Power | kW | 18.5 |
液压系统额定工作压力 | Hydraulic System Rated Working Pressure | Mpa | 16 | |
气动系统额定工作压力 | Pneumatic System Rated Working Pressure | Mpa | 0.8 | |
水冷系统额定工作压力 | Cooling System Rated Working Pressure | Mpa | 0.4 | |
通用制品耗气量(压缩后) | Universal product air consumption(compressed) | m³/h | 19 | |
冷切刀 | Hot Cutter Power | kW | 0 | |
装机总功率I | Total Installed Power I | kW | 83.82 | |
备注 Remarks |
液压油牌号/油箱容积 | Hydraulic oil NO. / tank volume | L | 46#/200 |
冷水机选型(风冷/水冷) | Chiller recommend (air-cooled/water-cooled) | hp | 15/10 | |
空压机选型(加储气罐) | Air compressor recommend (Add gas storage tank) | hp | 10 | |
备注/Remarks: | 以上机型均可叠加100点壁厚控制系统,叠加后改变的参数如下/All the machines above can be optionally equipped with 100 points parison control system,parameters would be changed as below: | |||
叠加壁厚控制后 After with 100points parison control |
机型 | Model | / | SCJ-90U+S2x6.5G |
壁厚油泵电机额定功率 | Parison Motor Rated Power | kW | 5.5 | |
装机总功率II | Total Installed Power II | kW | 89.32 | |
模板尺寸 | Effective Dimension Of Mold Plate | (mm) |
